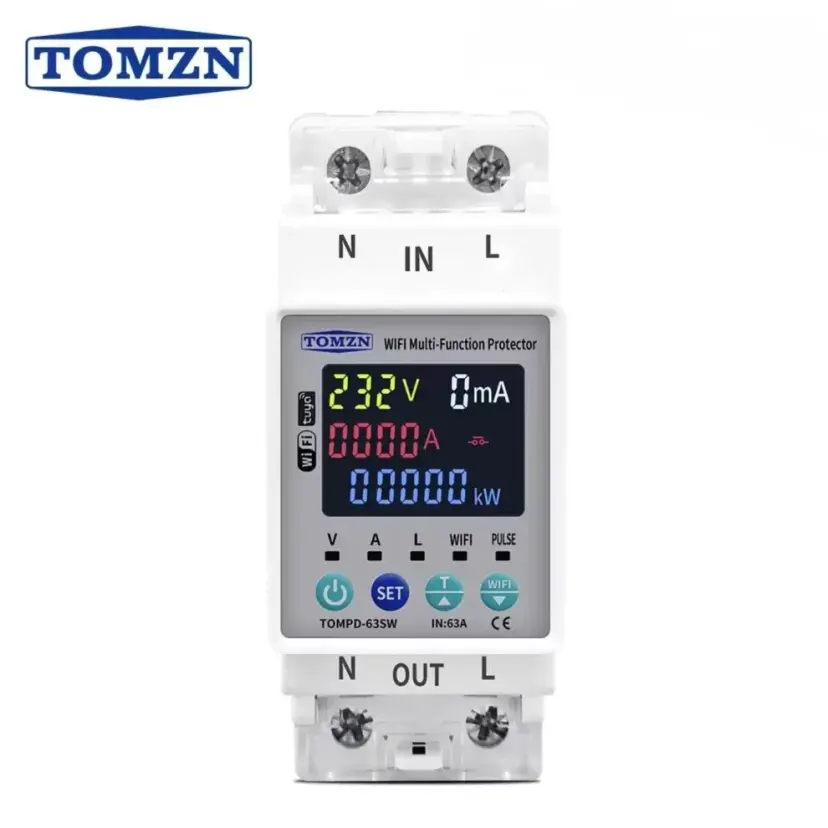

TOMZN TOMPD-63SW 63A WiFi Smart Circuit Breaker with Energy Monitoring & App Control

Features:
Remote ON/OFF control from anywhere using a smartphone
Real-time monitoring of voltage, current, power (kWh), and leakage current
App-based programmable timer via TUYA Smartlife
Adjustable protection for overvoltage, undervoltage, overcurrent, and leakage current
Supports both 110V and 230V input (L + N)
Automatic power reconnection with delay timer
Manual and app control supported for protection settings
Compact design suitable for standard circuit panels
Calibration options for voltage, current, and power
Low power consumption operation

Specifications:
Model: TOMPD-63SW (WiFi), TOMPD-63s (Non-WiFi)
Rated Voltage: 80V–300V AC, 50/60Hz
Rated Current: 1A–63A (adjustable)
Voltage Protection:
Overvoltage: 120V–300V (default 270V)
Undervoltage: 80V–210V (default 170V)
Overcurrent Protection: 1A–63A (default 40A)
Leakage Protection Range: Adjustable (value based on model)
Reconnect Delay: 1–500s (default 30s)
Action Time: 1–30s (default 1s)
Calibration Range: ±9.9%
Power Consumption: Less than 2W
App Support: TUYA Smartlife (WiFi model only)
Adjustable Protection Settings:
Under-Voltage Protection: Adjustable range from 85V to 220V (default: 170V).
Over-Voltage Protection: Adjustable range from 110V to 300V (default: 275V).
Over-Current Protection: Adjustable range from 1A to 63A (default: 63A).
Earth Leakage Protection: Adjustable range from 10-300mA.
Temperature Protection: Can be set in the app or manually adjusted.
